**What Is ROC Curve?**

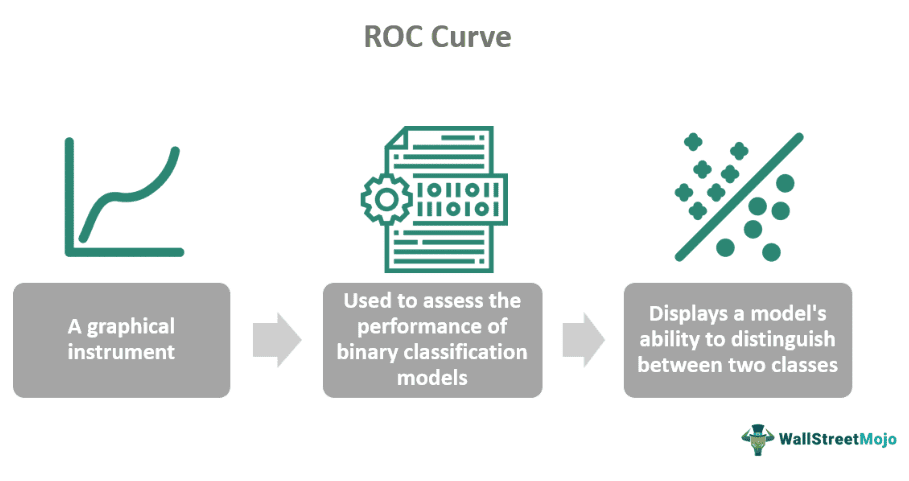

The Receiver Operating Characteristic (ROC) curve, is a graphical instrument that helps assess the performance of binary classification models. It is employed to visualize a model's ability to distinguish between two classes, usually denoted as "positive" and "negative." The curve is a valuable tool for comparing models and selecting optimal thresholds.

The curve illustrates the trade-off between the True Positive Rate and the False Positive Rate as the model's classification threshold is adjusted. The area under the ROC curve represents the overall performance of the model in a single value. Additionally, this curve is beneficial for evaluating a model's performance in various fields, including healthcare, finance, and machine learning.

##### Table of contents

- The ROC curve is a graphical representation of a binary classification model's ability to distinguish between classes at various classification criteria. Its overall performance can be concisely measured by looking at the area under the curve, or AUC.
- The curves enable users to select the most appropriate threshold for their application by assessing the relationship between Sensitivity and Specificity. Thus, this versatility is essential for circumstances where various errors have different repercussions.
- However, it can be erroneous to compare two models purely on the basis of these curves. Additional indicators are frequently needed for a more accurate evaluation.

**ROC Curve Analysis Explained**

The ROC curve is a graphical representation that showcases a binary classification model's ability to separate classes across various classification thresholds. The area under the curve (AUC) provides a concise measure of its overall performance. This curve is a significant tool for model evaluation and selection in various domains, including machine learning, medicine, and business.

The AUC is a single metric that summarizes the models' overall performance. A perfect model would have an AUC of 1, indicating that it can perfectly distinguish between the two classes at all thresholds. Conversely, a model that performs no better than random guessing would have an AUC of 0.5, as its ROC curve would overlap with the diagonal line. If the AUC is closer to 1, it indicates that the model's discriminative ability is adequate.

**How To Plot?**

A ROC Curve is created by graphing the true positive rate (TPR) against the false positive rate (FPR). The percentage of observations that were accurately predicted to be positive out of all positive observations is known as the true positive rate. Similarly, the fraction of observations that are incorrectly projected to be positive out of all negative observations is known as the false positive rate.

On the ROC space, a discrete classifier that provides the predicted class is represented by a single point. However, users can generate a curve by changing the score's threshold for probabilistic classifiers, which provide a probability or score that indicates how much an instance belongs to one class over another.

**How To Interpret?**

The ROC Curve analysis illustrates the trade-off between Sensitivity (or TPR) and Specificity (1 - FPR). Classifiers with curves towards the upper-left corner demonstrate superior performance. A random classifier is anticipated to provide points along the diagonal as a baseline (FPR = TPR).

The test's accuracy decreases as it approaches the 45-degree diagonal of the ROC space. It can be beneficial to summarise the performance of each classifier into a single measure when comparing several classifiers. A popular method is by finding the area under the ROC Curve or AUC. Sometimes, a classifier with a high AUC will perform worse in a particular location than a classifier with a lower AUC. However, the AUC functions well as an overall indicator of the accuracy of predictions.

**Examples**

Let us study the following examples to understand the curve:

**Example #1**

Suppose Ryan is an analyst who wants to predict whether a loan applicant is likely to default on their loan or not. He uses this curve to illustrate the model's performance. Ryan adjusted the model's decision threshold to measure how often it correctly identifies defaulting applicants and how often it incorrectly detects non-defaulting applicants as risks. The graph plots these values by creating a curve that starts at the bottom left corner and moves toward the top right corner. If the curve closely follows the top-left corner, it suggests that the model is good at distinguishing potential loan defaults with minimal false alarms.

#### Example** #2**

Data-driven decision-making boils down to the process of examining data to come up with better-informed decisions for business instead of depending on instinct. This allows users to double-check their choices before implementing them. To make better decisions, users must first establish their performance indicators. It will also help them recognize what needs to be measured. Users may assess the efficacy of a data-driven approach by defining key performance indicators and establishing metrics. The effectiveness of machine learning models can be assessed using a variety of model performance indicators. An ROC curve can be used to find the appropriate threshold value for a model.

**Benefits**

Some benefits of the ROC Curve** **are:

- One of the significant benefits of the ROC Curve is that it allows for an easy and direct comparison of multiple classification models. Thus, users can determine which model is better at distinguishing between classes by comparing the AUC values.
- They allow users to choose the optimal threshold based on the trade-off between sensitivity and specificity according to the application's needs. This flexibility is essential in scenarios where different types of errors have different costs or impacts.
- These curves do not change with variations in class distribution. Moreover, they are a robust alternative for evaluating models in scenarios where the balance between classes shifts between training and test data.
- The curves are widely used in diagnostic medicine to evaluate the performance of medical tests and diagnostic systems. Furthermore, they aid in decisions about disease detection and patient treatment.

**Drawbacks**

The ROC Curve analysis drawbacks are as follows:

- The curves do not provide information about the optimal threshold for making binary decisions.
- They may remain unchanged even if the user alters the class distribution. This can make them less informative when the class distribution varies significantly from the training data to the test data or in real-world scenarios.
- These curves focus on the ability to discriminate between classes, but they do not consider the consequences of classification errors. In some applications, misclassifying one class might have much graver consequences than the other. This makes the ROC less informative about real-world utility.
- A high area under the curve does not necessarily guarantee an excellent model. It only measures the overall ability of rank predictions, and this may not be the most crucial aspect in all applications.
- Comparing two models based solely on these curves can be misleading. For a complete assessment, additional metrics are often required.

**ROC Curve vs Precision-Recall Curve vs Confusion Matrix**

** **The differences between the three are as follows:

**ROC Curve**

- The Receiver Operating Characteristic curve is a pictorial representation of a binary classification model's performance.
- It plots the Sensitivity against the Specificity as the discrimination threshold is varied.
- The area under the curve (AUC) measures the model's effectiveness in differentiating between classes.
- A higher AUC suggests better overall performance, even when class distribution is imbalanced.

**Precision-Recall Curve**

- The precision-recall curve assesses a binary classification model's performance. It emphasizes the relationship between precision and recall.
- Precision is the proportion of true positives among all predicted positives, while Recall is the proportion of true positives among all actual positives.
- This curve is beneficial for dealing with imbalanced datasets, where one class significantly outweighs the other.
- A high precision-recall AUC indicates good performance in situations where correctly identifying positive instances is crucial.

**Confusion Matrix**

- The confusion matrix is a tabular representation that provides a detailed breakdown of a classification model's performance.
- It categorizes predictions into four groups. They are true positives, true negatives, false positives, and false negatives.
- From this matrix, metrics like accuracy, precision, recall, and F1 Score can be calculated to evaluate the model's performance in more detail.
- The matrix also provides a clear picture of how effectively the model performs in terms of class predictions and errors.

### Frequently Asked Questions (FAQs)

**1.**

**How to report ROC curve results?**The curve results are reported to assess the binary classification model's performance. The report highlights the model's ability to differentiate between positive and negative instances, with a higher AUC indicating more robust performance. This information aids in model selection, comparing different models, and understanding the model's effectiveness in real-world applications.

**2.**

**Why ROC curve is not smooth?**This curve may not always appear smooth due to the discrete nature of threshold adjustments in binary classification. The curve is constructed by calculating the True Positive Rate and False Positive Rate at different threshold levels. These calculations provide specific points on the curve. The number of thresholds used can be limited, especially when working with real-world data. As a result, the curve may appear jagged.

**3.**

**Is the ROC curve only for binary classification?**The Receiver Operating Characteristic curve is primarily designed for binary classification. However, it can be adapted for multi-class problems through techniques like one-vs-all, also known as one-vs-rest. In this method, the ROC analysis is performed separately for each class against the rest. While the traditional curve is binary, these extensions offer a way to evaluate models in multi-class scenarios. However, they may involve more complex illustrations than the binary case.
