VBA AutoFill

What Does AutoFill Do in Excel VBA?

We have seen autofill in worksheet where the cells are automatically filled based on the values in the previous cells above it, we can use VBA so that excel does the task for us, to do this we use the Selection.Autofill method and we provide the destination i.e. up to which cells the values needs to be filled.

The best use of VBA autofill comes when we need to fill the formula of the first cell to the cell of the column. We usually apply the formula in the first cell. Either we copy & paste to the last cell, or us just auto-fill by double click on the little arrow key. Another best example of using autofill in excelAutofill In ExcelAutofill is a function where excel identifies the series and fills the data automatically for us when we drag down the data. For example, if a cell value 1 and another cell below have value 2, we can select both the cells and drag them down, and it gets automatically filled.read more is when we need to insert serial numbers. We usually type the first three numbers; then, we drag down till the required last cell.

In VBA, we can perform the task of the AutoFill method. In this article, we will show you how we can use the autofill method and ways to write the code. Now we will see how we can use this tool in VBA codingTool In VBA CodingVBA code refers to a set of instructions written by the user in the Visual Basic Applications programming language on a Visual Basic Editor (VBE) to perform a specific task.read more.

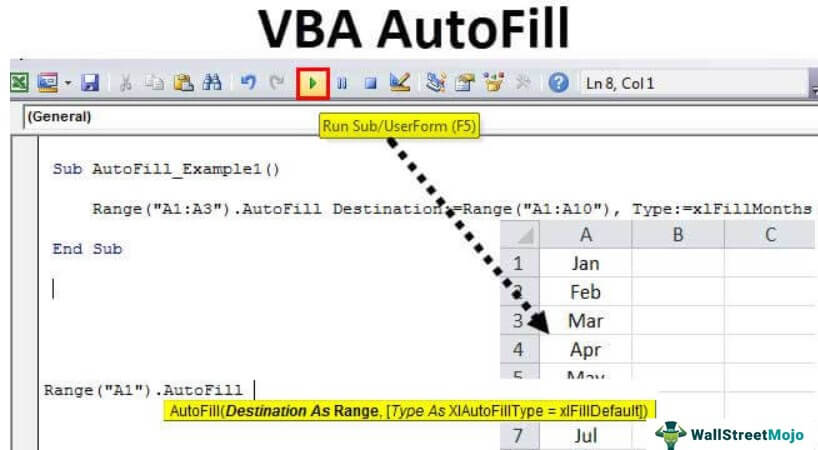

VBA AutoFill

You are free to use this image on your website, templates etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked
For eg:
Source: VBA AutoFill (wallstreetmojo.com)

How to Use AutoFill in VBA?

To use the autofill in VBA, we need to understand the syntax of the autofill method. Below is the syntax of the autofill.

vba autofill formula
  • Range (“A1”): What are the cells to identify the pattern of the fill series.
  • Destination: Till what cell you want to continue the fill series pattern. Here we need to mention the full range of cells.
  • Type as xlAutoFillType: Here we can select the series fill type. Below are the list of items in this parameter – xlFillCopy, xlFillDays, xlFillDefault, xlFillFormats, xlFillMonths, xlFillSeries, xlFillValues, xlFillWeekdays, xlFillYears, xlFlashFill, xlGrowthTrend, xlLinearTrend.

Examples of AutoFill in Excel VBA

Let’s see some simple to advanced examples of VBAExamples Of VBAHere's a list of the top examples of VBA Macro code in Excel: Print All Sheet Names, Insert Different Color Index in VBA, Insert Worksheets as Much as You want, Insert Blank Row After Every Other Row Highlight Spelling Mistakes.read more AutoFill in excel.

Example #1 – xlFillDefault

First, enter 3 serial numbers in the first three cells.

vba autof Example 1.1

In the VBA subprocedure, mention the VBA range as Range (“A1: A3”)

Code:

Sub AutoFill_Example1()

Range("A1:A3").

End Sub
vba autof Example 1.2

Now access the AutoFill method.

vba autof Example 1.3

Enter the destination as Range (“A1: A10”)

Code:

Range("A1:A3").AutoFill Destination:=Range("A1:A10")
vba autof Example 1.4

Select the Type as xlFillDefault.

Code:

Range("A1:A3").AutoFill Destination:=Range("A1:A10"), Type:=xlFillDefault
vba autof Example 1.5

Now run the code we will get the serial numbers from 1 to 10.

vba autof Example 1.6

Since we mentioned the end destination cell as A10, it has stopped there, and we can enter the destination cell as the last cell of the excel.

Example #2 – xlFillCopy

For the same numbers, we will use the type as xlFillCopy.

Code:

Sub AutoFill_Example1()

Range("A1:A3").AutoFill Destination:=Range("A1:A10"), Type:=xlFillCopy

End Sub
vba autof Example 2.1

I have a copy of the first three cells to the remaining cells.

vba autof Example 2.2

Example #3 – xlFillMonths

For this example, I have entered the first three months in the first 3 cells.

vba autof Example 3.1

Change the autofill type to xlFillMonths.

Code:

Sub AutoFill_Example1()

Range("A1:A3").AutoFill Destination:=Range("A1:A10"), Type:=xlFillMonths

End Sub
vba autof Example 3.2

This will fill the month series.

vba autof Example 3.3

Example #4 – xlFillFormats

For this example, I have entered numbers and applied formatting to those cells.

vba autof Example 4.1

Now I will change the type to xlFillFormats.

Code:

Sub AutoFill_Example1()

Range("A1:A3").AutoFill Destination:=Range("A1:A10"), Type:=xlFillFormats

End Sub
vba autof Example 4.2

Run this code and see what happens.

vba autof Example 4.3

It has filled formats of the first three cells to the next three cells and again, the next three cells and so on.

Example #5 – xlFlashFill

For this example, I have entered a few values from cell A1 to A10, as shown in the below image.

vba autof Example 5.1

From this list, I want to extract the numerical part. To tell excel about the pattern, in the first cell, I will manually enter the numerical part of the first cell.

vba autof Example 5.2

Now I will write the code as usual and change the type to xlFlashFill. This time we will use the B column range.

Code:

Sub AutoFill_Example1()

Range("B1").AutoFill Destination:=Range("B1:B10"), Type:=xlFlashFill

End Sub
vba autof Example 5.3

If I run this code, we will get the result like the below.

vba autof example 5.4

This is the overview of the VBA AutoFill method. I hope you have enjoyed it.

You can download this VBA AutoFill Excel Template from here – VBA AutoFill Excel Template
