## What Is A Dot Plot?

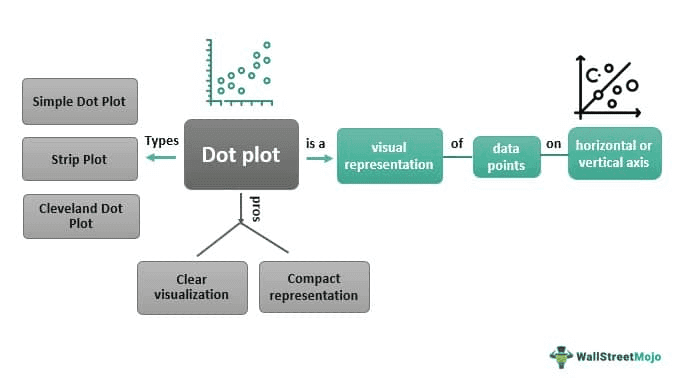

A dot plot is a simple, one-dimensional data visualization tool representing individual data points on a horizontal or vertical axis. The dots are stacked or spread out to indicate the frequency or occurrence of each value. The purpose of a dot plot is to display the distribution and frequency of data clearly and concisely.

You are free to use this image on your website, templates, etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked

For eg:

Source: Dot Plot (wallstreetmojo.com)

It allows viewers to quickly understand a dataset’s central tendency, variability, and outliers. Dot plots are especially useful when dealing with small to moderate-sized datasets, as they provide a detailed view of the individual data points. They are important because they offer a straightforward and visual representation of data, making it easy to identify patterns, trends, and outliers.

##### Table of contents

### Key Takeaways

- A dot plot is a data visualization tool representing individual data points on a horizontal or vertical axis.
- Dot plots provide a clear visual representation of individual data points, allowing for easy identification of values and outliers.
- Dot plots enable a quick understanding of the data distribution, central tendency, and variations in frequency or occurrence. They offer a simple and intuitive way to present data, particularly for smaller datasets, providing a compact, easy-to-interpret summary.
- It facilitates comparisons between values and helps identify patterns or trends within the dataset, making them valuable for exploratory analysis and data insights.

### Dot Plot Explained

A dot plot concisely and visually represents data points along a horizontal or vertical axis. Each data point is represented by a dot above its corresponding axis value. It consists of a series of dots or markers placed above the corresponding value on the axis, with each dot representing a single data point.

They require minimal interpretation and provide an intuitive way to compare values. Dot plots are commonly used in various fields, including statistics, data analysis, education, and quality control, to present data effectively and make informed decisions based on the information conveyed by the plot.

Dot plots provide a clear view of a dataset’s distribution, central tendency, and outliers. They are particularly useful for smaller datasets and allow for quick comparisons and identification of patterns. Dot plots offer a straightforward and good way to present data, making them valuable in various data analysis and decision-making fields.

###### Financial Modeling & Valuation Courses Bundle (25+ Hours Video Series)

**–>>** If you want to learn Financial Modeling & Valuation professionally , then do check this Financial Modeling & Valuation Course Bundle (**25+ hours of video tutorials with step by step McDonald’s Financial Model**). Unlock the art of financial modeling and valuation with a comprehensive course covering McDonald’s forecast methodologies, advanced valuation techniques, and financial statements.

### Types

A few variations of dot plots can be used to represent data. Here are three common types:

**Simple Dot Plo**t: This is the basic form of a dot plot where each data point is represented by a single dot above its corresponding value on the axis. The dots can be stacked or spread out depending on the frequency of each value.**Strip Plot**: In a strip plot, the dots representing data points are aligned along a single axis without stacking. This type of dot plot allows for better visibility of individual data points and their distribution.**Cleveland Dot Plot**: Named after the statistician William Cleveland, this type of dot plot arranges the dots in a horizontal line, typically from left to right, based on their values. The dots are placed nearby, allowing for a direct comparison of values.

### How To Make?

Let us look at how to create a dot plot:

**Gather the data**: Collect the dataset to be visualized using a dot plot. Ensure a set of numerical values is available for representation.**Determine the range and scale**: Identify the minimum and maximum values in the dataset to establish the appropriate axis range. Then, decide on the scale or increments for marking values on the axis.**Set up the axis**: Draw a horizontal or vertical axis, depending on the desired orientation and the nature of the data. Label the axis with the variable being measured.**Plot the dots**: Place a dot or marker above the corresponding value on the axis for each data point. Ensure proper alignment and spacing based on the frequency of occurrence of each value.**Add labels and titles**: Include a title for the dot plot to provide context. Label the axis with appropriate units or categories, if applicable.**Review and refine**: Carefully examine the dot plot for accuracy and clarity. Make any necessary adjustments to improve the visual representation of the data.

### How To Read?

Let us look at how to interpret a dot plot:

**Identify the variables**: Understand the variables represented on the axis of the dot plot. This could be numerical values, categories, or any other relevant data.**Determine the frequency**: Observe the vertical or horizontal arrangement of the dots and note the frequency or occurrence of each value. Dots that are stacked or closely clustered represent higher frequencies.**Analyze the distribution**: Examine the spread of the dots along the axis. Look for patterns, gaps, or clusters that indicate the distribution of the data points.**Identify central tendency**: Locate the position where most dots are concentrated. This represents the central tendency or the most common value within the dataset.**Spot outliers**: Look for individual dots isolated or significantly separated from the main cluster. These outliers represent data points that deviate from the majority.**Make comparisons**: Compare the heights or positions of dots between different values or categories on the dot plot. This allows for quick visual comparisons and insights into the relative frequencies or magnitudes.

### Examples

Let us have a look at the examples to understand the concept better.

**Example #1**

**Example #1**

As per an article by Financial Times, the dot plot has gained attention as it provides insight into the Federal Reserve’s future monetary policy decisions. The dot plot visually represents policymakers’ projections for interest rates over time. It shows each participant’s estimate of where interest rates should be at the end of the year for the current and upcoming years.

It highlights that the dot plot is a tool for understanding the Federal Reserve’s outlook and potential policy shifts. As a result, it offers valuable information about the policymakers’ expectations regarding the pace and timing of interest rate hikes or cuts. However, the dot plot also poses challenges as it represents individual projections and does not provide explicit policy guidance from the central bank.

Furthermore, the article points out that the dot plot can influence market expectations and financial markets. Investors closely analyze the dot plot to gauge the future path of interest rates and adjust their investment strategies accordingly. Changes in the dot plot can create volatility and uncertainty in markets, underscoring the importance of carefully interpreting and understanding its implications.

#### Example #2

Consider using a dot plot to visualize the test scores of a class of students. Suppose, in a class of 36 students, the test scores range from 60 to 100. A dot plot can be created to represent the distribution of these scores.

You are free to use this image on your website, templates, etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked

For eg:

Source: Dot Plot (wallstreetmojo.com)

On the vertical axis, the scores from 60 to 100 are listed, and for each score, a dot or marker is placed above the corresponding value on the axis. The dots are stacked based on the frequency of each score.

The dot plot reveals that the most frequent score is around 85, with several dots stacked at that point. However, a few outliers can also be identified, such as a score of 60 and 100, represented by individual dots placed above their respective values.

The dot plot allows for a quick understanding of the range of scores, identification of the most common score, and spotting any extreme scores or outliers. This visual representation helps in comprehending the class’s overall performance, identifying areas of strength or weakness, and making informed decisions about further actions or interventions if necessary.

### Advantages And Disadvantages

The following are the advantages of Dot Plots:

**Simplicity:**Dot plots are easy to understand and interpret, making them accessible even to individuals with limited statistical or data analysis knowledge.**Individual data points**: Dot plots display individual data points, allowing for a granular dataset view. This helps in identifying outliers, patterns, and specific values of interest.**Clear visualization:**The visual representation of dots makes it straightforward to see the distribution, central tendency, and variations within the data.**Compact representation:**These are ideal for small to moderate-sized datasets as they provide a compact and concise summary of the data without overwhelming viewers with excessive information.

The following are the disadvantages of Dot Plots:

**Limited scalability**: Dot plots may become cluttered and less effective with large datasets that contain numerous data points or overlapping dots.**Subjectivity:**The interpretation of dot plots relies on visual assessment, which can introduce subjectivity or bias in the analysis. Different individuals may perceive patterns or trends differently.**Lack of numerical precision**: Dot plots do not provide exact numerical values for each data point, making extracting precise information or performing detailed calculations challenging.**Insufficient for complex analysis**: While dot plots are useful for basic exploration and comparison, they may not be sufficient for in-depth statistical analysis or modeling that requires advanced techniques or computations.

**Dot Plot vs **Stem** And Leaf **

Let us look at the differences between the dot plot and stem & leaf plot:

Dot Plot | Stem-and-Leaf Plot |
---|---|

Uses dots or markers to represent individual data points | Organizes data into a table-like format with stems and leaves |

Provides a visual representation of data distribution | Provides a structured tabular view of the data |

Suitable for small to moderate-sized datasets | Suitable for small to large datasets |

Displays frequency by stacking or spreading out dots | Shows the exact values of each data point |

Simple and intuitive | Requires understanding of the stem-and-leaf plot structure |

Easy to identify central tendencies, outliers, and patterns | Allows for precise numerical values to be read directly |

Limited scalability for large datasets | Can accommodate datasets of various sizes |

Visual comparison of data points | Allows for detailed analysis and calculations |

Quick visualization for exploratory analysis | Suitable for extracting exact values and performing calculations |

### Dot Plot vs Histogram

Let us look at the differences between Dot plots and Histogram:

Dot Plot | Histogram |
---|---|

Represents individual data points | Represents data grouped into bins |

Uses dots or markers | Uses bars or rectangles |

Shows the frequency of each value | Shows frequency in predefined intervals |

Suitable for small to moderate-sized datasets | Suitable for datasets of any size |

Provides a visual representation of data distribution | Provides a visual representation of data distribution |

Can show outliers and individual values | Provides less detail on individual values |

Useful for comparing specific values and identifying patterns | Useful for analyzing overall distribution and shape |

Simple and intuitive | Requires binning and consideration of bin widths |

Suitable for quick visual analysis | Allows for more precise quantitative analysis |

### Dot Plot vs Bar Chart

Let us look at the differences between the Dot plot and the Bar chart:

Dot Plot | Bar Chart |
---|---|

Represents individual data points | Represents data using rectangular bars |

Uses dots or markers | Uses bars of varying lengths |

Shows the frequency or occurrence of each value | Shows frequency or quantity in each category |

Suitable for small to moderate-sized datasets | Suitable for datasets of any size |

Provides a visual representation of the data distribution | Provides a visual representation of categorical data |

Can show outliers and individual values | Provides a summary view of data within categories |

Useful for comparing specific values and identifying patterns | Useful for comparing quantities or frequencies across categories |

Simple and intuitive | Requires understanding of bar lengths and categories |

Allows for precise visualization of individual data points | Allows for easy comparison of values between categories |

Can accommodate numeric or categorical data | Primarily used for categorical or discrete data |

### Frequently Asked Questions (FAQs)

**1.**

**How to find the median of a dot plot?**To find the median, arrange the dots in ascending or descending order along the axis. Then Locate the dot that falls in the middle of the distribution. If there are an even number of dots, take the average of the two middle dots to determine the median.

**2.**

**How to find the mean of a dot plot?**To find the mean, assign a value to each dot based on its position on the axis. Then do the sum of all the assigned values. Finally, divide the sum by the number of dots to calculate the mean.

**3.**

**How to make a dot plot in Excel?**To make a dot plot in Excel, Enter data values in a column. Next, select the data range and go to the “Insert” tab. Choose the “Scatter” chart type and select the plot style. Finally, customize the chart as desired and apply axis labels.

**4.**

**How to find the range of a dot plot?**To find the range, determine the highest and lowest values the dots represent. Then, Subtract the lowest value from the highest value to calculate the range. The range represents the spread or difference between the minimum and maximum values in the plot.
