VBA Split Function

What is VBA Split Function in Excel?

Split function in VBA is a very useful string function which is used to split strings into multiple substrings based on a delimiter provided to the function and a comparison method, there are other string functions too which converts a string into substring but split function can split a string into more than one substrings.

In normal worksheet LEFT function, MID functionsMID FunctionsThe mid function in Excel is a text function that finds strings and returns them from any mid-part of the spreadsheet. read more, and RIGHT in excelRIGHT In ExcelRight function is a text function which gives the number of characters from the end from the string which is from right to left. For example, if we use this function as =RIGHT ( “ANAND”,2) this will give us ND as the result.read more are used as text functions in excel to extract the portion of the sentence. For example extraction of first name, middle name, and the last name is the common scenarios we have seen. But in VBA we have the more versatile function called SPLIT which will do a similar job for you. SPLIT is a built-in function in Excel VBA which can split the supplied sentence based on the delimiter. For example, if you want to split the email address to different parts the common element in the email address is “@” in all the email id’s, so “@” becomes delimiter here.

VBA Split Function

You are free to use this image on your website, templates etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked
For eg:
Source: VBA Split Function (wallstreetmojo.com)

VBA Split String Function

Like all the other functions split too has its own syntax. Below are the parameters of the excel VBA Split string function.

Split Formula
  • Value or Expression: This nothing but the actual value we trying to split. For example, if you want to split first name and last name, the full name is the value here.
  • [Delimiter]: What is the common element to split the Value or Expression? In email Id’s “@” is the common element, in address comma (,) is the common element. If you ignore this it considers the space character as the default value.
  • [Limit]: How many substrings you want from the Value or Expression you have supplied. For example, if the value is “My name is Excel”, if you supply  3 as the limit it will show the result in three lines like “My”, “name”, “is Excel”.
  • [Compare]: Since we don’t use compare argument skip this optional argument.

In the next sections of the article, we will see how to use the SPLIT function in excel VBA practically.

Examples of VBA Split String Function

Below are the practical examples of the Split Function in Excel VBA.

You can download this VBA Split Function Excel Template here – VBA Split Function Excel Template

Example #1 – Split the Sentence

Split returns the result in the array which will start from 0. All the arrays are starts from 0 not from 1.

Assume you have the word “My Name is Excel VBA” in cell A1.

VBA Split Example 1

Now you want to split this sentence into pieces like “My”, “Name”, “is”, “Excel”, “VBA”. Using Excel VBA SPLIT String function we can return this result.

Step 1: Start the macro with the name.

VBA Split Example 1-1

Code:

Sub Split_Example1()

End Sub

Step 2: Declare three variables.
VBA Split Example 1-2

Code:

Sub Split_Example1()

   Dim MyText As String
   Dim i As Integer
   Dim MyResult() As String

End Sub

Step 3: Now for the defined variable, My Text assigns the word “My Name is Excel VBA”.

VBA Split Example 1-3

Code:

Sub Split_Example1()

  Dim MyText As String
  Dim i As Integer
  Dim MyResult() As String

  MyText = "My Name is Excel VBA"

End Sub

Step 4: Now for My Result variable apply VBA split string function.

VBA Split Example 1-4

Code:

Sub Split_Example1()

  Dim MyText As String
  Dim i As Integer
  Dim MyResult() As String

  MyText = "My Name is Excel VBA"
  MyResult = Split(

End Sub

Step 5: Expression is our text value. Since we have already assigned our text value to variable My Text enter this argument here.

VBA Split Example 1-5

Code:

Sub Split_Example1()

  Dim MyText As String
  Dim i As Integer
  Dim MyResult() As String

  MyText = "My Name is Excel VBA"
  MyResult = Split(MyText)

End Sub

Note: As on now ignore all the other parameters.

Step 6: So now My Result holds this split result. As I told earlier in the post, split function stores the result as an array so here

  • My Result (0) = “My”
  • My Result (1) = “Name”
  • My Result (2) = “is”
  • My Result (3) = “Excel”
  • My Result (4) = “VBA”

Even though this code does not make any impact to start off the SPLIT function we can use this code.

Example #2 – VBA SPLIT String with UBOUND Function

In order to store the result of the SPLIT function, we can use vba UBOUND functionVba UBOUND FunctionUBOUND, also known as Upper Bound, is a VBA function that is used in conjunction with its opposite function, LBOUND, also known as Lower Bound. This function is used to determine the length of an array in a code, and as the name suggests, UBOUND is used to define the array's upper limit.read more along with SPLIT function.

UBOUND will returns the maximum length of the array. In the above example, the maximum length of the array was 5.

Take the same word “My Name is Excel VBA”. Let’s split this word and store from cell A1 onwards.

Step 1: Let’s continue from where we left off in the previous example.

VBA Split Example 2

Step 2: Now apply FOR NEXT LOOP in VBAFOR NEXT LOOP In VBAAll programming languages make use of the VBA For Next loop. After the FOR statement, there is a criterion in this loop, and the code loops until the criteria are reached. read more from 0 to maximum length of the array i.e. UBOUND.

VBA Split Example 2-1

The reason we started from zero because SPLIT will store the result from zero, not from 1.

Step 3: Now apply VBA CELLS propertyVBA CELLS PropertyCells are cells of the worksheet, and in VBA, when we refer to cells as a range property, we refer to the same cells. In VBA concepts, cells are also the same, no different from normal excel cells.read more and store the result.

Code:

Cells(i + 1, 1).Value = MyResult(i)
Example 2-2

Step 4: Run this code, we would have split values.

Example 2-3

Complete Code:

Sub Split_Example1()

  Dim MyText As String
  Dim i As Integer
  Dim MyResult() As String

  MyText = "My Name is Excel VBA"
  MyResult = Split(MyText)

  For i = 0 To UBound(MyResult)
      Cells(i + 1, 1).Value = MyResult(i)
  Next i

End Sub

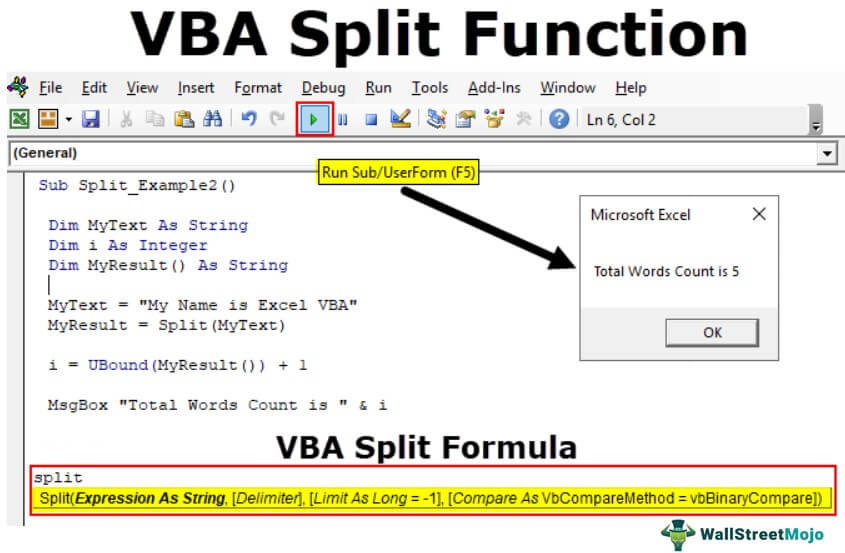

Return Word Count

We can also show the total number of words in the supplied value.  Use the below code to show the total number of word counts. Code:

Sub Split_Example2()

  Dim MyText As String
  Dim i As Integer
  Dim MyResult() As String

  MyText = "My Name is Excel VBA"
  MyResult = Split(MyText)

  i = UBound(MyResult()) + 1
  MsgBox "Total Words Count is " & i

End Sub
Return Word Count 1

Copy and paste the above VBA codeVBA CodeVBA code refers to a set of instructions written by the user in the Visual Basic Applications programming language on a Visual Basic Editor (VBE) to perform a specific task.read more and run it, the message box will return the result.

Return Word Count 2

Things to Remember

  • If the delimiter is not supplied SPLIT automatically thinks the delimiter as space.
  • If you want to split except space then you need to specify the delimiter in double-quotes.
  • SPLIT stores the result as array results.
  • UBOUND function returns the maximum length of the array.

This has been a guide to VBA Split Function. Here we learned how to use VBA Split String Function in Excel along with some practical examples and a downloadable excel template. Below are some useful excel articles related to VBA –
