Excel VBA Functions
We have seen that we can use the worksheet functions in VBA, i.e. the functions of excel worksheet in VBA coding using application.worksheet method, but how do we use a function of VBA in excel, well such functions are called user-defined functions, when a user creates a function in VBA it can be also used in excel worksheet.
Although we have many functions in excel to manipulate the data, sometimes we need to have some customization in the tools so that we can save our time as we do some tasks repeatedly. We have predefined functions in excel like SUM, COUNTIF, SUMIFSUMIFThe SUMIF Function is a conditional sum function that calculates the sum of given numbers based on a condition. It only uses one condition, and the syntax for using this function is =SUMIF (Range, Criteria, Sum range)., COUNTIFS,COUNTIFS,COUNTIFS function in excel facilitates the users to count the number of values or cells that fulfill the users' specified criteria. This function identifies cells through multiple criteria, unlike "COUNTIF", which incorporates only a single criterion. COUNTIFS function can be used on numbers, text, and other conditions. It also supports logical operators (>, <, < >, =). VLOOKUP, INDEX, MATCH in excel, etc. but we do some tasks on a daily basis for which a single command or function is not available in Excel, then by using VBA, we can create the custom function which is called User Defined Functions (UDFUDFUser Defined Function in VBA is a group of customized commands created to give out a certain result. It is a flexibility given to a user to design functions similar to those already provided in Excel.).
What do VBA Functions do?
- They carry out certain calculations; and
- Return a value
In VBA, while defining the function, we use the following syntax to specify the parameters and their data type.
Data type here is the type of data the variable will hold. It can hold any value (any data type or object of any class).
We can connect the object with its property or method by using the period or dot (.) symbol.
How to Create Custom Functions using VBA?
Suppose we have the following data from a school where we need to find the total marks scored by the student, result, and grade.
As to sum up the marks scored by an individual student in all subjects, we have an inbuilt function, i.e., SUM, but to find out the grade and result based on the criteria set out by the school is not available in the Excel by default.
This is the reason why we need to create user-defined functions.
Step 1: Find Total Marks
First, we will find the total marks using the SUM function in excel.
Press Enter to get the result.
Drag the Formula to the rest of the cells.
Now to find out the Result (Passed, Failed, or Essential Repeat), the criteria set by the school is that.
- If the student has scored more than or equal to 200 as total marks out of 500 and the student is also not failed in any subject (has scored more than 32 in each subject), then a student is passed,
- If the student has scored more than or equal to 200, but the student is failed in 1 or 2 subjects, then a student has got “Essential Repeat” in those subjects,
- If the student has scored either less than 200 or fails in 3 or more subjects, then the student is failed.
Step 2: Create ResultOfStudent Function

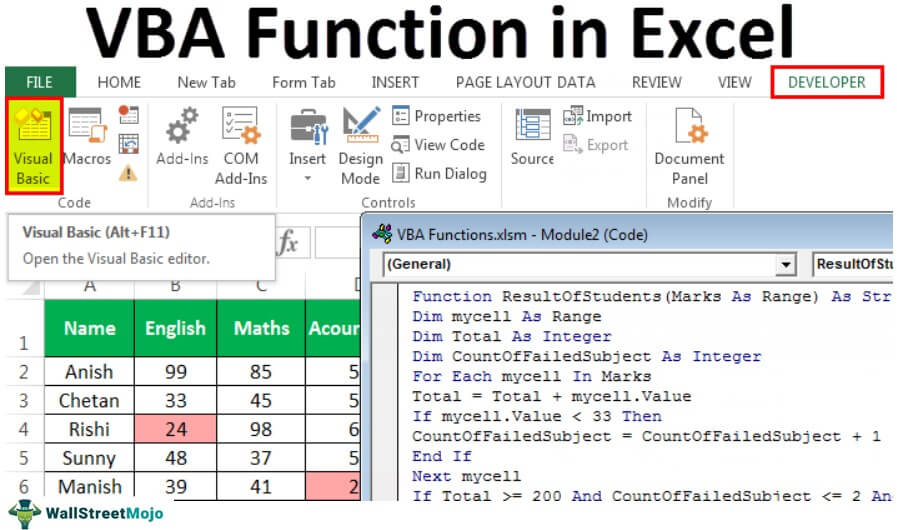

To create a function named ‘ResultOfStudent,’ we need to open “Visual Basic Editor” by using any of the methods below:
- By using the Developer tab excel.Developer Tab Excel.Enabling the developer tab in excel can help the user perform various functions for VBA, Macros and Add-ins like importing and exporting XML, designing forms, etc. This tab is disabled by default on excel; thus, the user needs to enable it first from the options menu.
If the Developer tab is not available in the MS Excel, then we can get that by using the following steps:
- Right-click anywhere on the ribbon then, Choose the Customize the Ribbon in excelRibbon In ExcelRibbons in Excel 2016 are designed to help you easily locate the command you want to use. Ribbons are organized into logical groups called Tabs, each of which has its own set of functions.‘.
When we choose this command, the “Excel Options” dialog box opens.
- We need to check the box for “Developer” to get the tab.
- By using the shortcut key, i.e., Alt+F11.
- When we open the VBA editorVBA EditorThe Visual Basic for Applications Editor is a scripting interface. These scripts are primarily responsible for the creation and execution of macros in Microsoft software., we need to insert the module by going to the Insert menu and choosing a module.
- We need to paste the following code into the module.
Function ResultOfStudents(Marks As Range) As String Dim mycell As Range Dim Total As Integer Dim CountOfFailedSubject As Integer For Each mycell In Marks Total = Total + mycell.Value If mycell.Value < 33 Then CountOfFailedSubject = CountOfFailedSubject + 1 End If Next mycell If Total >= 200 And CountOfFailedSubject <= 2 And CountOfFailedSubject > 0 Then ResultOfStudents = "Essential Repeat" ElseIf Total >= 200 And CountOfFailedSubject = 0 Then ResultOfStudents = "Passed" Else ResultOfStudents = "Failed" End If End Function
The above function returns the result for a student.
We need to understand how this code is working.
The first statement, ‘Function ResultOfStudents(Marks As Range) As String,’ declares a function named ‘ResultOfStudents’ that will accept a range as input for marks and will return the result as a string.
Dim mycell As Range Dim Total As Integer Dim CountOfFailedSubject As Integer
These three statements declare variables, i.e.,
- ‘myCell’ as a Range,
- ‘Total’ as Integer (to store total marks scored by a student),
- ‘CountOfFailedSubject’ as integer (to store the number of subjects in which a student has failed).
For Each mycell In Marks Total = Total + mycell.Value If mycell.Value < 33 Then CountOfFailedSubject = CountOfFailedSubject + 1 End If Next mycell
This code checks for every cell in the ‘Marks’ range and adds the value of every cell in the ‘Total’ variable, and if the value of the cell is less than 33, then adds 1 to the ‘CountOfFailedSubject’ variable.
If Total >= 200 And CountOfFailedSubject <= 2 And CountOfFailedSubject > 0 Then ResultOfStudents = "Essential Repeat" ElseIf Total >= 200 And CountOfFailedSubject = 0 Then ResultOfStudents = "Passed" Else ResultOfStudents = "Failed" End If
This code checks the value of ‘Total’ and ‘CountOfFailedSubject’ and passes the ‘Essential Report,’ ‘Passed,’ or ‘Failed’ accordingly to the ‘ResultOfStudents.’
Step 3: Apply ResultOfStudents Function to Get Result
ResultOfStudents function takes marks, i.e., selection of 5 marks scored by the student.
Now Select the Range of cells, i.e., B2: F2.
Drag the Formula to the rest of the Cells.
Step 4: Create ‘GradeForStudent’ Function to get Grades
Now to find out the grade for the student, we will create one more function named ‘GradeForStudent.’
The code would be:
Function GradeForStudent(TotalMarks As Integer, Result As String) As String If TotalMarks > 440 And TotalMarks <= 500 And ((Result = "Passed" Or Result = "Essential Repeat") Or Result = "Essential Repeat") Then GradeForStudent = "A" ElseIf TotalMarks > 380 And TotalMarks <= 440 And (Result = "Passed" Or Result = "Essential Repeat") Then GradeForStudent = "B" ElseIf TotalMarks > 320 And TotalMarks <= 380 And (Result = "Passed" Or Result = "Essential Repeat") Then GradeForStudent = "C" ElseIf TotalMarks > 260 And TotalMarks <= 320 And (Result = "Passed" Or Result = "Essential Repeat") Then GradeForStudent = "D" ElseIf TotalMarks >= 200 And TotalMarks <= 260 And (Result = "Passed" Or Result = "Essential Repeat") Then GradeForStudent = "E" ElseIf TotalMarks < 200 Or Result = "Failed" Then GradeForStudent = "F" End If End Function
This function assigns a ‘Grade’ to the student based on the ‘Total Marks’ and ‘Result.’
We just need to write the formula and open the brackets in Cell H2 and pressing Ctrl+Shift+A to find out about the arguments.
The GradeForStudent function takes Total marks (sum of marks) and the result of the student as an argument to calculate the grade.
Now Select the respective cells, i.e., G2, H2.
Now we just need to press Ctrl+D after selecting the cells to copy down the formulas.
We can highlight the values of less than 33 with the red background color so that we find out the subjects in which student is failed.
This has been a guide to VBA Functions. Here we discuss how to create custom functions using VBA code along with practical examples and a downloadable excel template. You may learn more about VBA from the following articles –
