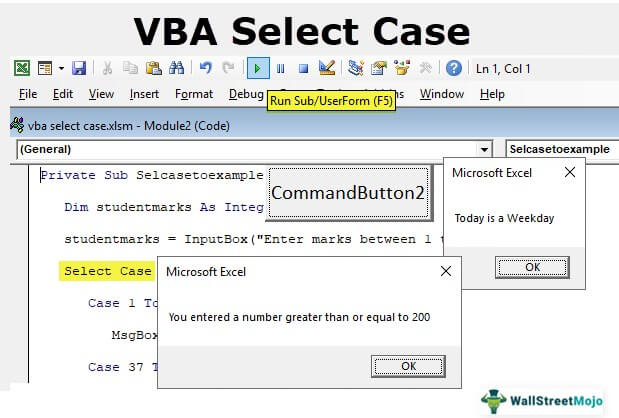

VBA Select Case

Updated on January 18, 2024

Select Case Statement of Excel VBA

The Select Case VBA statement compares an expression with multiple Case statements containing conditions. If a match is found in any of the Case statements, the condition is said to be true. Further, if a condition is true, its corresponding code is executed and no more Case statements are tested. However, if a match is not found in any of the Case statements, the conditions are said to be false. In this case, the code of the Case Else statement is executed.

For example, an employee is asked to rate the work-life balance of his organization on a scale of 10. Further, his input will be compared with the following three conditions (or possible outcomes):

  • If the input is between 1 and 3 (both inclusive), display the message “the work-life balance is poor.”
  • If the input is between 4 and 6 (both inclusive), display the message “the work-life balance is reasonable.”
  • If the input is between 7 and 10 (both inclusive), display the message “the work-life balance is healthy.”

The message of only that condition will display, which matches the input entered by the employee. Note that the expression can either be entered directly in a Select Case structure or collected from the user as an input.

The purpose of using the Select Case statement in VBA is to execute different codes based on the fulfillment or non-fulfillment of different conditions. The Select Case statement is used to evaluate (or test) three or more conditions. It is a substitute for the If Then Else statement of VBA and the nested IF statement of Excel.

You are free to use this image on your website, templates, etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked
For eg:
Source: VBA Select Case (wallstreetmojo.com)

Syntax of the Select Case Statement of Excel VBA

The Select Case statement in VBA is similar to the Switch Case statement used in programming languages like Java, C#, PHP, etc. The syntax of the Select Case statement of Excel VBA is given as follows:

Select [Case]  Expression for testing

[Case] List of Expression Statements (Case 1, Case 2, Case 3 and so on...)

Case Else (Else Statements)

End Select
End Sub

The Select Case statement of Excel VBA accepts the following arguments:

  • Expression for testing: This is a single expression that is to be compared with the different Cases. It can either be a numeric or textual expression. So, it can evaluate to a character, integer, Boolean, object, string, etc.
  • List of expressions: This is the list of expressions (called Case statements) against which the “expression for testing” is compared. Excel VBA looks for an exact match within these Case statements. These Case statements consist of one or more possible outcomes (values or conditions) that may or may not match the “expression for testing.” If there are multiple expressions (or values) within a single Case, they must be separated by commas. The following keywords can be used in Case statements:
  • Statements: This is one or more codes succeeding the “list of expressions.” Only that code is executed for which the “expression for testing” matches the “list of expressions.”
  • Case Else statement: This consists of one or more codes (or statements), which are executed when all the Case statements (or list of expressions) are false.
  • End Select: It closes the Select Case structure. Every Select Case statement must necessarily have an End Select statement.

The “expression for testing,” “list of expressions,” and End Select clauses are required in a Select Case construction. However, the “statements” and Case Else statements are optional in the given syntax.

Note 1: In a Select Case statement in VBA, each Case statement is compared with the “expression for testing.” Once a condition is met (or the Case statement is matched), no further Case statements are tested. However, if a condition is false (or the Case statement does not match), the next Case statement is tested.

The testing of Case statements (or conditions) continues till one of the specified conditions is met or till the Case Else or the End Select statement. If none of the tested conditions is true and there is no Case Else statement, control passes to the End Select statement.

Note 2: If the “expression for testing” matches more than one Case statement, only the code of the first such match is executed.

–>> If you want to learn Excel VBA professionally, then our VBA Basic Course (16+ hours) is the perfect solution. In our Basic Excel VBA course you learn the skill of automating tasks using Variables, Data Types, Ranges, and Cells in VBA. Master Control Structures, including Conditional Statements and Loops, and discover techniques for manipulating data through sorting, filtering, and formatting. By the end of the course, you will be able to apply your acquired skills to real projects, culminating in an Excel VBA project which will solidify your ability to create efficient, automated solutions.

How to use the Select Case Statement of Excel VBA?

The Select Case statement is a feature of Excel VBA. One can access VBA from the “visual basic” option of the Developer tab of ExcelThe Developer Tab of ExcelEnabling the developer tab in excel can help the user perform various functions for VBA, Macros and Add-ins like importing and exporting XML, designing forms, etc. This tab is disabled by default on excel; thus, the user needs to enable it first from the options menu.read more. In this tab, the user-defined functions (UDF) and their codes can be created.

The Select Case statement of VBA should be used in place of the nested IF statementNested IF Statements In ExcelIn Excel, multiple IF conditions are IF statements that are contained within another IF statement. They are used to test multiple conditions at the same time and return distinct values. Additional IF statements can be included in the 'value if true' and 'value if false' arguments of a standard IF formula.read more of Excel. This is because the former is easier to understand and execute than the latter.

The steps to use the Select Case statement of VBA are listed as follows:

  1. Create a command button and place it in the Excel worksheet. When the command button is clicked, a macroExcel MacroA macro in excel is a series of instructions in the form of code that helps automate manual tasks, thereby saving time. Excel executes those instructions in a step-by-step manner on the given data. For example, it can be used to automate repetitive tasks such as summation, cell formatting, information copying, etc. thereby rapidly replacing repetitious operations with a few clicks. read more runs. The running of the macro performs an action.
  2. Right-click the command button and choose the option “view code.” The Visual Basic Editor opens.
  3. Enter the code between the CommandButton function and End Sub.
  4. Debug and compile the code to identify the syntax errors.
  5. Change the input values to observe the different outputs.

Note 1: The user-defined functions (UDF) are customized functions that cater to the specific needs of the user.

Note 2: Every time the input is changed (in point e), the “expression for testing” changes. As a result, the conditions that match this expression change. Hence, different codes are executed each time the input values change.

VBA Select Case Examples

You can download this VBA Select Case Excel Template here – VBA Select Case Excel Template

Example #1–“Expression for Testing” is Entered Directly

In the following code, the “expression for testing” is A=20 and the Case statements are 10, 20, 30, and 40. There is also a Case Else statement in this code.

Private Sub Selcaseexmample ()
Dim A As Integer
A = 20

Select Case A

Case 10
 MsgBox "First Case is matched!"

Case 20
 MsgBox "The Second Case is matched!"

Case 30
 MsgBox "Third Case is matched in Select Case!"

Case 40
 MsgBox "Fourth Case is matched in Select Case!"

Case Else
 MsgBox "None of the Cases match!"

End Select
End Sub

On running the preceding code, the following output is obtained.

VBA Select Case

Explanation: The expression A=20 is compared with the four Case statements 10, 20, 30, and 40. A match is found in the second Case statement (Case 20). Consequently, the message of the second Case statement is displayed, which is “the second Case is matched.”

Had the expression not matched with any of the Case statements, the message of the Case Else statement would have been displayed.

Note: The MsgBox function of VBA displays a dialog box containing a customized message.

Example #2–“Expression for Testing” is Compared with a Range of Values Using the “To” Keyword

In the following code, the “expression for testing” is collected from the user with the help of the InputBox function of VBA. There are four Case statements, namely Case 1 To 36, Case 37 To 55, Case 56 To 80, and Case 81 To 100. There is also a Case Else statement in the code.

Private Sub Selcasetoexample ()
Dim studentmarks As Integer
studentmarks = InputBox("Enter marks between 1 to 100.")

Select Case studentmarks

  Case 1 To 36
   MsgBox "Fail!"

  Case 37 To 55
   MsgBox "C Grade"

  Case 56 To 80
   MsgBox "B Grade"

  Case 81 To 100
   MsgBox "A Grade"

  Case Else
   MsgBox "Out of range"

End Select
End Sub

On running the preceding code, the user is asked for input. Assume that the user enters 90. So, the following output is obtained.

VBA Select Case 1

Explanation: The Case statements of the preceding code contain a range of values. Notice that in the code, each number preceding the To keyword is smaller than the number succeeding this keyword.

The “expression for testing” is entered as 90 by the user. This expression matches the fourth Case statement (Case 81 to 100). So, the code in this Case statement is executed. Hence, the message “A grade” is returned by VBA. This output is displayed in a dialog box due to the usage of the MsgBox function in the code.

Both numbers (preceding and succeeding the To keyword) of the range are inclusive. So, had the user entered 81, it would have again matched with the fourth Case statement. However, had a number greater than 100 been entered, the output would have been “out of range.” This message is defined in the Case Else statement of the code.

Note: The InputBox function collects the input from the user through a dialog box. The message shown in this dialog box is the same as that entered in the InputBox function of the code.

Example #3–“Expression for Testing” is Compared with Numbers Using the “Is” Keyword

In the following code, the “expression for testing” is collected from the user. There are two Case statements, namely Case Is < 200 and Case Is >= 200. There is no Case Else statement in the code.

Sub CheckNumber()
  Dim NumInput As Integer
  NumInput = InputBox("Please enter a number.")

Select Case NumInput

Case Is < 200
 MsgBox "You entered a number less than 200"

Case Is >= 200
 MsgBox "You entered a number greater than or equal to 200"

End Select
End Sub

On running the preceding code, a dialog box containing the message “please enter a number” is displayed. Assume that the user enters 200. So, the following output is displayed.

vba select case example 3

Explanation: Observe that the two logical operators (< and >=) in the code are preceded by the “Is” keyword. Had this keyword not been supplied, VBA would have automatically inserted it before the logical operators.

The “expression for testing” is entered by the user as 200. This expression is compared with the two Case statements of the preceding code. A match is found in the second Case statement. This is because 200 is not greater than but is equal to 200.

Notice that there is no Case Else statement in the preceding code. This is because whatever number the user enters, it falls within either of the two Case statements. So, one of the two Case statements will always be true. Hence, the Case Else statement is not required as it runs only when all Case statements evaluate to false.

Example #4–“Expression for Testing” is Entered in a Cell and Evaluated by the Command Button

In the following code, the “expression for testing” is taken from cell A1 of the Excel worksheet. There are three Case statements and one Case Else statement.

Sub color()
Dim color As String
color = Range("A1").Value

Select Case color

Case "Red", "Green", "Yellow"
 Range("B1").Value = 1

Case "White", "Black", "Brown"
 Range("B1").Value = 2

Case "Blue", "Sky Blue"
 Range("B1").Value = 3

Case Else
 Range("B1").Value = 4

End Select
End Sub

Further, a command button has been created in the worksheet with the help of ActiveX controls. The input entered in cell A1, the command button, and the output obtained in cell B1 are shown in the following image.

vba select case example 4

Explanation: The preceding code is executed by clicking the command button of the Excel worksheet. Notice that multiple expressions of each Case statement are separated by commas (like “Red”, “Green”, “Yellow”).

The “expression for testing” is entered as “pink” in cell A1. This expression matches none of the three Case statements specified in the code. Consequently, the code of the Case Else statement is executed. So, the output in cell B1 is 4.

Had the user entered a color (in cell A1) specified in any of the three Case statements, the corresponding code would have run. For instance, had the user entered “White” in cell A1 (without the double quotes and with “W” capital), the output in cell B1 would have been 2.

Hence, a change in the input of cell A1 causes the output of cell B1 to change.

Example #5–“Expression for Testing” is Divided by 2 with the MOD Operator of VBA

In the following code, the “expression for testing” is collected from the user. There are two Case statements, namely Case True and Case False. The Case Else statement is not there in the code.

Sub CheckOddEven()
CheckValue = InputBox("Enter a number.")

Select Case (CheckValue Mod 2) = 0

Case True
 MsgBox "The number is even"

Case False
 MsgBox "The number is odd"

End Select
End Sub

On running the preceding code, a dialog box with the message “enter the number” is displayed. Assume that the user enters 10. The output obtained is shown in the following image.

example 5

Explanation: The “expression for testing” entered by the user is 10. This expression is divided by 2 with the help of the MOD operatorMOD OperatorVBA MOD is the same as the application in mathematics. When a number is divided by its divisor, this function gives us the remainder from the division. However, it is not a function in VBA; rather it is an operator.read more. If the remainder is equal to zero, the number is divisible by 2. Such a number is even. If the remainder is not equal to zero, the number is not divisible by 2 and is odd.

Since 10 is divisible by 2, the code of the Case True statement is executed. Hence, the output is the message “the number is even.” Notice that a Case Else statement is not required in the preceding code. This is because either of the two Case statements will be true at all times.

Note: The MOD operator of VBA divides one number by the other and returns the remainder as the output.

Example #6–Nested Select Case Statements Where “Expression for Testing” is the Current Date

In the following code, the “expression for testing” is the current date. There are two Select Case statements [Select Case Weekday (Now) and Case 1,7], one Case Statement (Case 1), and two Case Else statements.

Sub TestWeekday()

Select Case Weekday(Now)

Case 1, 7
 Select Case Weekday(Now)

Case 1
 MsgBox "Today is Sunday"

Case Else
 MsgBox "Today is Saturday"

End Select

Case Else
  MsgBox "Today is a Weekday"

End Select
End Sub

On running the preceding code, the output obtained is shown in the following image.

example 6

Explanation: The inner Select Case statement (Case 1, 7) is the Case statement of the outer Select Case statement [Select Case Weekday (Now)]. The outer Select Case statement checks whether the current date is a weekday, Saturday or Sunday.

When the NOW VBA functionNOW VBA FunctionNOW is a date and time function in VBA which is used to get the current system date and time. VBA Now function does not takes any arguments and the return output for this function is date.read more is enclosed within the VBA WEEKDAY functionVBA WEEKDAY FunctionWeekday in VBA is a date and time function to identify the weekday of a given date provided as an input. This function returns an integer value from 1 to 7 range. There is an optional argument provided to this function which is the first day of the week.read more, the latter returns a day of the week that corresponds with the current date. If the output of the WEEKDAY function is 1, the message to be displayed is “today is Sunday.” If the output of the WEEKDAY function is 7, the message to be displayed is “today is Saturday.” This is because, in the preceding code, VBA considers 1 and 7 as Sunday and Saturday respectively.

The message “today is a weekday” will be returned when the output of the WEEKDAY function is other than 1 and 7. So, the second Case Else statement is executed when Case 1 (today is Sunday) and the first Case Else statements (today is Saturday) are false.

Since this article has been created on a weekday, the output of the Select Case statement is “today is a weekday.”

Note 1: The NOW function of VBA returns the current date and time. This function does not take any arguments. The WEEKDAY function of VBA returns the day of the week corresponding to the specified date.

Note 2: Every nested Select Case statement should necessarily contain a matching End Select statement.

The important points related to the Select Case statement of VBA are listed as follows:

  • The Is keyword used in the Case statement and Case Else statement is different from the Is operator of VBA.
  • The codes of the Select Case statement of VBA can run successfully if macros have been enabled.
  • The “expression for testing” entered in the dialog box should be in accordance with the message of the InputBox function of VBA.

Note: To know more about enabling macrosEnable MacrosTo enable macros simply means to run or execute a macro in a particular file in order to save the time spent on repetitive actions. To enable macros, select “enable all macros” from the “trust center” of the File tab (in the “options” button). read more, click the given hyperlink.

Frequently Asked Questions

1. Define the Select Case statement of Excel VBA.

The Select Case statement is used to compare an expression with multiple Case statements. If a Case statement matches the expression, the corresponding code is executed. However, if a Case statement does not match the expression, the next Case statement is evaluated.

The evaluation of Case statements continues till a match is found or till the Case Else or End Select statement. Once a match is found in any of the Case statements, no further Case statements are tested. The Case Else statement is optional and its code is executed when none of the Case statements is true.

Note: For details related to the working of the VBA Select Case statement, refer to the examples of this article.

2. How is the Select Case statement of Excel VBA written?

The steps to write the Select Case statement of Excel VBA are listed as follows:

a. Specify a single expression that needs to be compared with multiple Case statements. This expression can be numeric or textual. Note that the expression is evaluated only once and is stated at the beginning of the Select Case structure.
b. Specify the Case statements. Each Case statement should consist of one or more conditions (or possible outcomes) followed by a code. For stating multiple conditions within the same Case statements, use the comma as the separator.
c. Specify the Case Else statement. The code of this statement will be executed if none of the Case statements match the expression. Though it is optional to specify the Case Else statement, it is recommended to be included in the Select Case structure.
d. State the End Select statement. This statement is necessarily required as it terminates the Select Case structure. If no Case statement matches the expression and there is no Case Else statement, control passes to the End Select statement.

Note 1: If the expression (in point a) is to be collected as an input from the user, a customized message must be stated within the InputBox function of VBA.

Note 2: For more details related to the writing of the VBA Select Case statement, refer to the codes of the examples and their explanations given in this article.

3. Differentiate between the Select Case and If Then Else statements of Excel VBA.

The differences between the Select Case and If Then Else statements of Excel VBA are listed as follows:

a. The Select Case statement evaluates a single expression at a time, while the If Then Else statement can evaluate multiple expressions simultaneously.
b. The Select Case statement checks one expression for multiple possible outcomes, while the If Then Else statement checks multiple expressions for multiple possible outcomes.
c. In a Select Case statement, any number of Case statements can be included without impacting the readability of the code. In contrast, a lot of conditions tend to make the If Then Else statement unreadable.
d. It is easy to write, edit, and make changes to the Select Case statement. On the other hand, it is difficult to write, identify errors, and make changes to the If Then Else statement.

In both, Select Case and If Then Else statements, a code is executed depending on whether a condition is met or not. So, based on the requirement and convenience, one can choose either of the two statements.

This has been a guide to the Excel VBA Select Case statement. Here we discuss how to use the Excel VBA Select Case statements with certain keywords (like Is, To) along with examples and a downloadable Excel template. Take a look at the following Excel VBA articles–
