Power BI Themes

Article byJeevan A Y
Edited byAshish Kumar Srivastav
Reviewed byDheeraj Vaidya, CFA, FRM

As we know, Power BI is a very good visualization tool. It has various tools and many custom-made tools to make visualization better. Similarly, we have some built-in themes in Power BI where light is the default theme. But, we can also create our custom-made theme in Power BI.

Themes in Power BI

Working with the default theme does not make the reporting tool beautiful. But by changing themes, we can add more value and eye-catching color to our reporting dashboards on Power BI.

Assume you just bought a brand new mobile phone from a store. When you open it, it has all the basic features, and as the day goes on, we change each feature default thing to our things as per our liking.

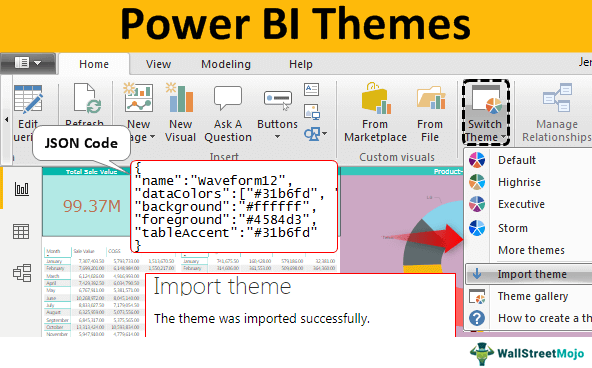

Power-Bi-Themes

You are free to use this image on your website, templates, etc, Please provide us with an attribution linkHow to Provide Attribution?Article Link to be Hyperlinked
For eg:
Source: Power BI Themes (wallstreetmojo.com)

–>> If you want to learn Power BI professionally, then Power BI Basics Course (5+ hours) is the perfect solution. This course will introduce you to a wide range of Power BI concepts like collection of software services, apps, and connectors that work together to turn your unrelated sources of data into coherent, visually immersive, and interactive insights, Creating Reports in Power BI Desktop, Analyze Data with Excel, Graphs & Visualizations, Interactive Dashboards along with some real life examples.

Change Default Theme in Power BI

Changing the default theme is not the hardest job in the world because it requires simple Power BI window knowledge. Follow the below steps to change the default theme.

Follow the below steps to change the default theme.

  1. Open Power BI visualization software. Go to the “Home” tab and find the “Switch Theme” option.


    Power BI Themes - Switch Theme

  2. From this dropdown list, you can see many built-in themes available with your version of Power BI.


    Power BI Themes - Switch Theme (Options)

  3. Look at the below theme of the dashboard.


    Power BI Themes - Default Theme
    It is the default theme applied when we have created the dashboard.

  4. We will apply the “City park” theme from the “Switch Theme” dropdown list under “More themes.”


    Power BI Themes - City Park Theme

  • And, automatically, our dashboard changes as follows.
Power BI Themes - City Park Theme (Dashboard)
  • Below is the preview of the “Twilight” theme impact.
Power BI Themes - Twilight Theme

We can also build our theme using the “JSON” file format. Now, we will see the basic level “JSON” coding structure.

How to Design Power BI Themes?

To design your theme, you need JSON coding knowledge. At this point, you can download the already built-in JSON files or can create your files.

Format of JSON Theme

{

“name”:

“dataColors”

“background”

“foreground”

tableAccent”

}

Name: The first thing we can notice with any JSON file is the theme’s name, which is a mandatory field in the JSON file.

Data Colors: This one requires color codes for data. It would help if you learned about Hex color codes used in the JSON file. Like this, we can give Hex color codes to design your [header=”Power BI Report” description=”Power bi reports are detailed visualizations of data that are presented differently than common reports. These reports can be multi-page or single-page, with visuals on each page.” url=”https://www.wallstreetmojo.com/power-bi-reports/”]Power BI report[/wsm-tooltip] theme. It includes “Background Color,” “Foreground Color,” and “Table Accent Color.”

  • Below is the JSON file code we are using to import as a custom theme file for my above-shown dashboard.

Code:

{
"name":"Waveform12",
"dataColors":["#31b6fd", "#4584d3", "#5bd078", "#a5d028", "#f5c040", "#05e0db", "#3153fd", "#4c45d3", "#5bd0b0", "#54d028", "#d0f540", "#057be0"],
"background":"#ffffff",
"foreground":"#4584d3",
"tableAccent":"#31b6fd"
}

Copy the code and save it as a “Note Pad” file on your computer hard disk with a .json extension.

  • Now, go to the dashboard window and click on the “Switch theme” option from this dropdown list to choose the “Import Theme” option.
Power BI Themes - Import Themes
  • Now, this will open up the JSON file choosing window. From this window, choose the saved file from the folder where you have saved the JSON code, as given above. And click on “Open.”
Power BI Themes - Choose JSON File
  • Then, your Power BI may show a message as “The theme was imported successfully.” And click on “Close.”
Power BI Themes - Import Popup
  • Your dashboard immediately impacts the data colors mentioned in the JSON file Hex color codes.
Imported Theme

The dashboard above looks new because of the newly designed JSON theme file.

Import Live Theme Json Codes from Online Power BI Store

One more interesting thing you can do with the custom theme is a search on the Microsoft website and import new theme files online.

Theme Gallery
  • It will take you to the below web page.
Theme Gallery Window
  • We can click on any of the themes from the above window and download the JSON file. For example, we have clicked on “Sunflower Twilight Theme.” For this, we can see the preview as shown below.
Sunflower Twilight Theme
  • Click on the “JSON” file to download the JSON file.
Sunflower Twilight Theme Download

Once the file is downloaded, as usually “Import” the JSON theme file to Power BI. Immediately, your dashboard will change as per the JSON file code.

Things to Remember

  • Power BI uses the default theme, as the product development team mentioned.
  • By writing JSON codes, we can change the theme.
  • We can find many themes of JSON codes on the Microsoft website.

This article is a guide to Power BI Themes. Here, we discuss changing the dashboard report’s default theme and creating your own Power BI theme using JSON code. You can learn more about Power BI from the following articles: –
